Truck Parts Automatic Brake Clearance Adjustment Arm 3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E For FAW Truck

Brand Name:	FAW
Model Number:	3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E
MOQ:	2 pieces
Price:	negotiation
Packaging Details:	Conventional cardboard packaging or packaging according to requirements
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Chian

Certification:

CQC URS CE、

Product Name:

Truck Parts Automatic Brake Clearance Adjustment Arm

Product Model:

3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E

Stock:

In Stock

Services:

24 Hours Online Service

5 Pieces

Dimensions:

32X12X12 Cm

Applicable Models:

FAW Truck

Support Customization

Warranty:

6 Months

Payment:

Online Payment

Supply Ability:

90055

Product Description

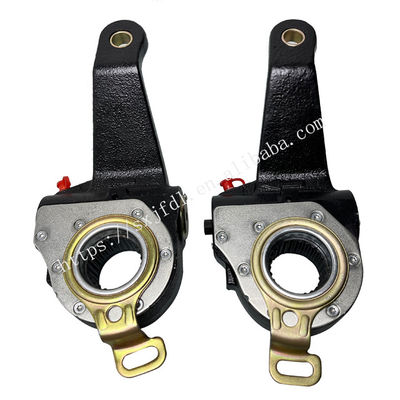

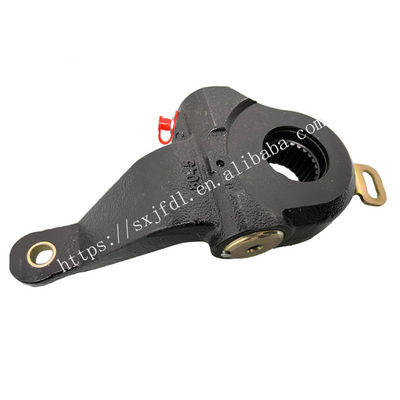

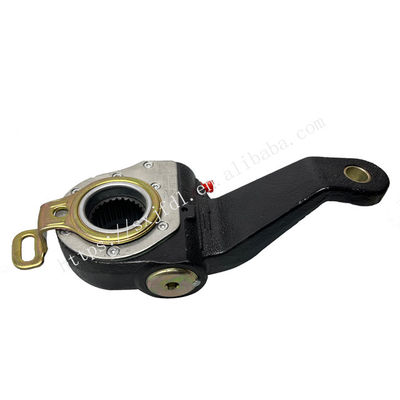

FAW truck parts 3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E automatic brake clearance adjustment arm

Definition and function:

Automatic brake clearance adjustment arm, referred to as self-adjusting arm, can automatically and timely adjust the clearance increased by the wear of brake friction pads, so that the brake clearance is always kept within the design range, ensuring the normal operation and good performance of the brake system.

Working principle:

Braking process identification: When the vehicle brakes, the adjustment arm will accurately record the various clearance changes between the brake drum and the friction lining. The brake clearance is mainly divided into theoretical brake clearance (normal clearance between the brake drum and the brake shoe), elastic brake clearance (working clearance to ensure safe and reliable braking) and excess brake clearance (excessive clearance caused by friction lining wear and other reasons).
Clearance adjustment action: When the friction pad wear causes the brake clearance to exceed the set limit, the mechanical structure inside the adjustment arm, such as the worm gear and other devices, will start to work. The worm gear drives the camshaft to rotate through a certain angle, thereby compensating for the clearance increased by wear and restoring the brake clearance to the normal range. After releasing the brake pedal, the adjustment arm will return to the initial state and prepare for the next brake adjustment.

Truck Parts Automatic Brake Clearance Adjustment Arm 3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E For FAW Truck 0

Part Name	Truck Parts Automatic Brake Clearance Adjustment Arm	Part Number	3503205-A0E 3502205-A0E 3502210-A0E 3503210-A0E
Packing	Carton,Wooden Box, Pallet	Quality Standard	100% Tested
Quality Certification	ISO,CCC,GSO,CE,SGS,TUV	Warranty	6 months
MOQ	5 Pieces	Payment Terms	L/C, T/T, Western Union,Paypal
Weight	3.500 kg	Stock	In Stock
Advantages	Fast delivery, simple operation, long service life	Payment	Online Payment

Structural composition:

►Rack tooth groove (control arm): used to control the theoretical brake clearance value to ensure that the initial clearance of the brake system under normal conditions meets the design requirements.
►Clutch: combined with the thrust spring, it can identify the elastic clearance and excess clearance value during the braking process, and realize the rapid on-off start-stop of the force transmission system, ensuring that the adjustment arm adjusts the clearance at the right time.
►Thrust spring: assists the clutch to work, senses the force generated by the clearance change during the braking process, and provides power support for the clearance adjustment.
Worm gear: on the one hand, it plays the role of transmitting the braking torque, transmitting the force of the brake pedal to other components of the brake system; on the other hand, when the brake is returned, it drives the camshaft to rotate according to the clearance change to adjust the brake clearance.
►Housing and accessories: play the role of protecting internal components, transmitting torque and maintaining system stability, ensuring that the adjustment arm can work normally under various working conditions.

Advantages:

►Stable braking performance: always maintain a suitable brake clearance, so that the braking effect of the vehicle is consistent and stable, avoiding problems such as brake fatigue caused by excessive clearance or friction plate drag and jamming caused by too small clearance, and improving the reliability and safety of braking.
►Reduce maintenance costs: The automatic adjustment function reduces the frequency of manual regular inspection and adjustment of brake clearance, reducing vehicle maintenance costs and driver labor intensity.
►Extend component life: It helps reduce wear of brake system components and extend the service life of brake components, air compressors, brake cylinders and other components in the compressed air system.

‌
