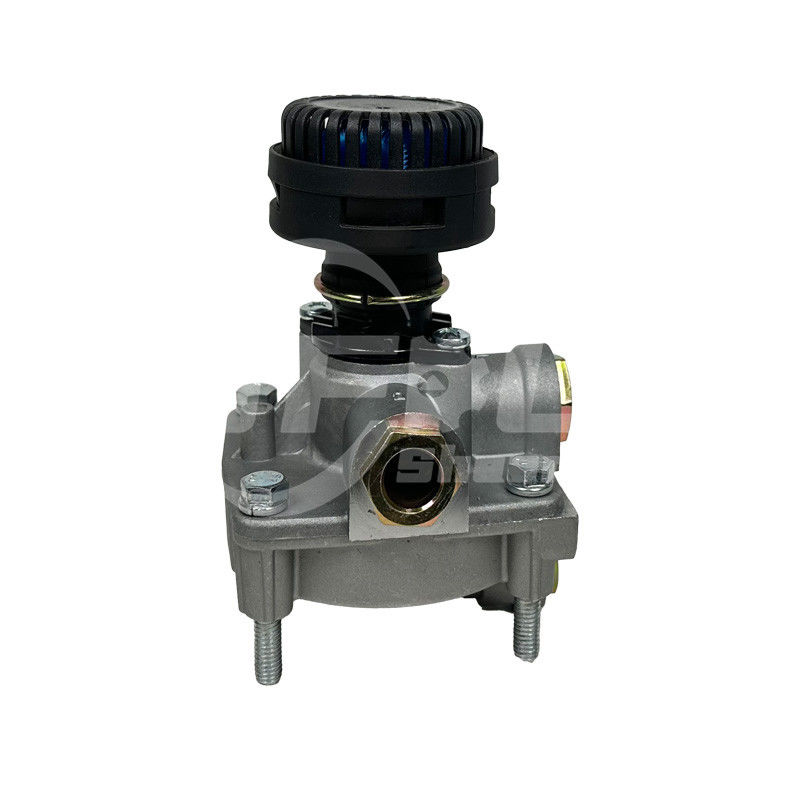

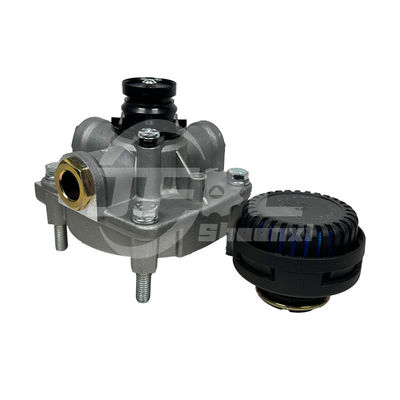

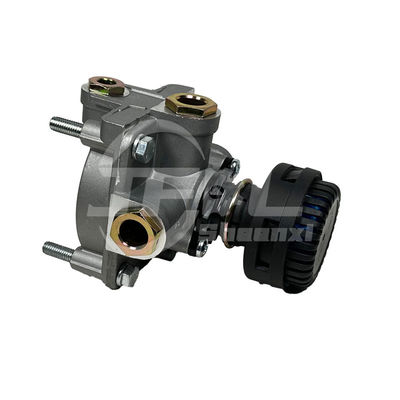

Air Brake Valve Relay Valve WG9000360134 35180190100 Sinotruk HOWO Truck parts

Brand Name:	HOWO
Model Number:	WG9000360134 35180190100
MOQ:	1 pc
Price:	negotiation
Packaging Details:	Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs.
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001、CE、CQC、UPS

Product Name:

Air Brake Valve Relay Valve

OE NO:

WG9000360134 35180190100

Acceptable

Warranty:

6 Months

Stock:

In Stock

Quality:

100% Professional Testing

Material:

Standard

Supply Ability:

1258954 pcs

Product Description

Air Brake Valve Relay Valve WG9000360134 35180190100

Product Introduction:

The truck relay valve is an important component of the automobile air brake system. It is mainly composed of a housing, a piston, a valve core and a return spring. It has four working ports: an input port, an output port, a control port and an exhaust port. The air inlet is connected to the air reservoir, and the air outlet is connected to the brake air chamber. When the brake pedal is pressed, the output air pressure of the brake valve is used as the control pressure input of the relay valve. Under the control pressure, the air inlet valve is pushed open, and the compressed air enters the brake air chamber directly from the air reservoir through the air inlet without flowing through the brake valve, which greatly shortens the inflation line of the brake air chamber and accelerates the inflation process of the air chamber.

Features:

►Shorten brake reaction time

►Balanced braking force

Product Name	Sinotruk HOWO Truck partsAir Brake Valve Relay Valve WG9000360134 35180190100	Brand Name	TOP BRAND
Part Number	WG9000360134 35180190100	Application	For HOWO
Mini Order	One Piece	Packing	Carton,Wooden Box, Pallet
Supply Ability	10000 pieces	OEM	Available
Quality Standard	100% Tested	Quality Certification	ISO,CCC,GSO,CE,SGS,TUV
Condition	New	Payment Terms	L/C, T/T, Western Union,Paypal
Origin	China	Loading Port	Any Port In China

Air Brake Valve Relay Valve WG9000360134 35180190100 Sinotruk HOWO Truck parts 0
