Engine HF6098 1R-0741 Hydraulic Filter Cartridge For Heavy Duty Construction Machinery

Brand Name:	JFDL-Replacement Filter Cartridge
Model Number:	1R-0741
MOQ:	1pc
Price:	negotiation
Packaging Details:	Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001、CE、URS、CQC

Type:

Filter Element

Stock:

In Stock

Part Number:

HF6098 1R0741 1R-0741

Warranty:

6 Months

Shipping Terms:

UPS / DHL / TNT / EMS / Fedex

Quality:

Origin Quality Standard

Purpose:

For Replace/repair

Supply Ability:

9852PCS

Highlight:

Engine hydraulic filter cartridge

HF6098 hydraulic filter cartridge

1R-0741 hydraulic oil filter cartridge

Product Description

Engine Part HF6098 1R0741 1R-0741 Hydraulic Filter Cartridge for Heavy-Duty Construction Machinery

Core Function

The 1R-0741 is designed to maintain the cleanliness of hydraulic and transmission systems. Its primary role is to intercept abrasive particles and contaminants generated during operation or introduced during maintenance, preventing premature wear on sensitive components like pumps, valves, and cylinders.

Performance Features

Efficiency Rating: Standard Efficiency. Optimized for general-duty applications.
Media Technology: Features Acrylic Beading to prevent pleat bunching and maximize the surface area for filtration.
Contamination Control: Includes a Non-metallic Center Tube which is cleaner than metal tubes and eliminates the risk of metal shavings entering the system.
Spiral Roving: Provides superior pleat stability, ensuring the filter performs consistently even during high-pressure surges or cold starts.

Technical Specifications

Attribute	Specification Details
Part Name	Hydraulic & Transmission Filter Element
Efficiency Rating	Standard Efficiency
Media Type	Cellulose (Standard) / Synthetic (Optional equivalents)
Filtration Rating	Typically 28 - 40 Microns (Standard range)
Overall Height	228.00 mm (9.00 in)
Outer Diameter	130.00 mm (5.10 in)
Inner Diameter	85.00 mm (3.30 in)
Net Weight	Approx. 0.82 kg (1.80 lbs)
Core Function	Removes contaminants to protect sensitive hydraulic components.
Operating Temp.	Suitable for standard hydraulic oil operating ranges.

Product Images

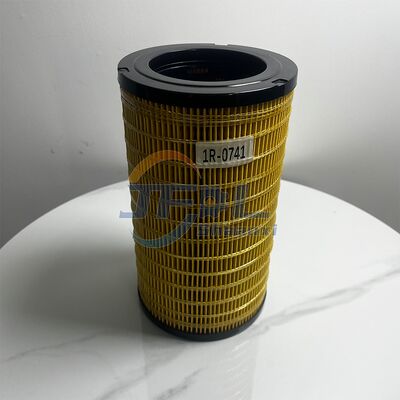

Engine HF6098 1R-0741 Hydraulic Filter Cartridge For Heavy Duty Construction Machinery 0

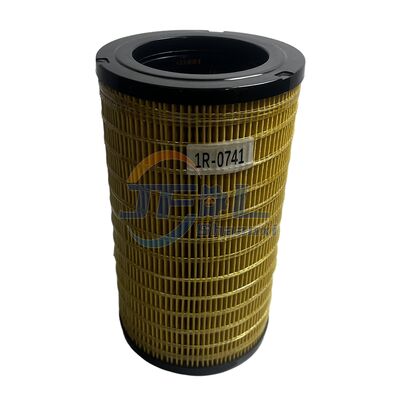

Engine HF6098 1R-0741 Hydraulic Filter Cartridge For Heavy Duty Construction Machinery 1

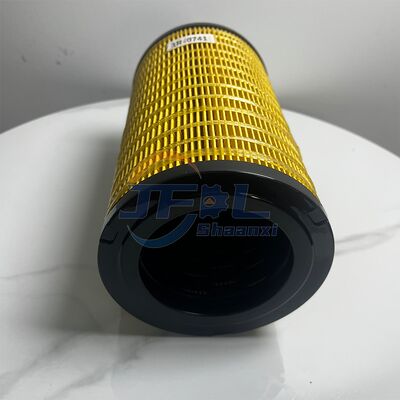

Engine HF6098 1R-0741 Hydraulic Filter Cartridge For Heavy Duty Construction Machinery 2
