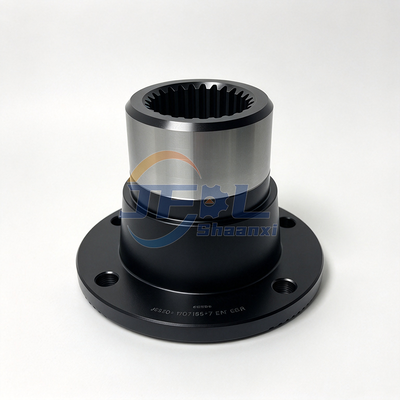

JS220-1707159 Gearbox Output Shaft Flange Transmission Output Flange For Shacman Delong Sinotruk Howo Foton Auman Truck spare parts Transmission System

Brand Name:	JFDL- Shacman Gearbox Output Shaft Flange
Model Number:	JS220-1707159
MOQ:	1pc
Price:	negotiation
Packaging Details:	Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001、CE、URS、CQC

Part Number:

JS220-1707159

Item Name:

Transmission Output Shaft Flange,Gearbox Output Flange,Drive Shaft Flange,FAST Gearbox Parts

Function:

Shacman Delong Truck Gearbox Output Shaft Flange Efficient Torque Transmission

Speeds:

12-speed

Torque Capacity:

3000 Lb-ft

Type Of Attachment:

Splined Slip-on Connection

Applicable Medium:

Heavy-duty Gear Oil

Usage:

Heavy Truck Transmission Parts Installed At The Rearmost End Of The Transmission To Transfer The Massive Rotational Torque To The Main Drive Shaft

Supply Ability:

24456PCS

Product Description

Chinese Supplier JS220-1707159 Gearbox Output Shaft Flange Transmission Output Flange For Shacman Delong Sinotruk Howo Foton Auman Truck spare parts Transmission System

Features

Material Strength: The JS220-1707159 gearbox output shaft flange is manufactured using an alloy steel forging process, offering high strength and torsional resistance to withstand the heavy torque loads at the output end of heavy-duty truck transmissions.
Precision Splines: Precision-machined for a tight fit with the gearbox output shaft, ensuring smooth, reliable power transmission and reduced vibration.
High Load-Bearing Capacity: The JS220-1707159 transmission output flange withstands significant torsional and impact loads, as well as the instantaneous loads experienced during vehicle startup, while offering enhanced fatigue resistance.
Power Transmission: The JS220-1707159 transmission output shaft flange connects the gearbox output shaft to the driveshaft assembly, stably transmitting torque after gear reduction to the drive axle.

Product Name	JS220-1707159 Gearbox Output Shaft Flange Transmission Output Flange	Form	One-piece Forged Drive Flange
Part Number	JS220-1707159	Finish	Anti-rust Oil Coating
Type	Transmission Output Flange	Technic	Die Forging / Hot Forging
Supply Ability	24456PCS	Single package size	15X20X20 cm
Application	Heavy duty truck	Single gross weight	5.000 kg
Material	steel	Main Market	Middle East
Shape	Circular Disk with Stepped Sleeve	Color	Dark Grayish Black

JS220-1707159 Gearbox Output Shaft Flange Transmission Output Flange For Shacman Delong Sinotruk Howo Foton Auman Truck spare parts Transmission System

Related Accessiores

No.	Part Number	Applicable Models	Products Name
1	5505629	FAW	Output Flange Transmission
2	81.96210.0407	Shacman delong	Shaft Flange
3	DZ90009320129		Transmission Flange
4	DZ9114320905		Output Shaft
5	612630030023		Fuel Injection Pump Faran Flange
6	81.39115.5076		Flange Plate
7	612600080486		Faran Flange
8	HD90129321048		Gearbox Rear Flange
9	612600081898	Foton Auman	Fuel Injection Pump Flange

Product and Packaging

Compatibility:Compatible with Fast Gear 12JSD220T and 16JSD220TA series transmissions; suitable for heavy-duty trucks including Shacman Delong, Howo and Auman models such as tractor units, dump trucks and cargo trucks. It mounts to the end of the transmission output shaft to connect the driveshaft and transmit power to the rear axle.
Direct Replacement:Designed as a direct replacement for original parts in cases of internal spline wear, abnormal drivetrain noise, jerky power delivery, impact cracks on the flange, transmission oil leakage, flange face deformation, uneven bolt tightening or connection failure due to enlarged bolt holes.
Packaging: carton packing and wooden box packing.For example:

JS220-1707159 Gearbox Output Shaft Flange Transmission Output Flange For Shacman Delong Sinotruk Howo Foton Auman Truck spare parts Transmission System

Maintenance Points

Before assembly, clean the output shaft splines and the flange's internal splines to remove burrs and metal debris; inspect the flange for cracks and the seal journal for grooving or wear.
The output shaft nut must be tightened to the specified torque and the locking tab must be fully bent to secure it and prevent the nut from loosening during operation.
It is recommended to inspect the assembly during flange replacement; don't reuse the part if the oil seal journal shows grooving damage.
When connecting the driveshaft flange, tighten the bolts evenly in a diagonal pattern across multiple stages; don't fully tighten one side at a time with excessive force, as this can cause flange deformation.
Don't attempt repair via build-up welding if there is severe spline wear, flange cracking or grooving on the oil seal journal; replace the flange assembly instead.
After installation, perform a test run to check for oil leaks at the rear of the transmission and to ensure there is no vibration or abnormal noise in the chassis drivetrain.
